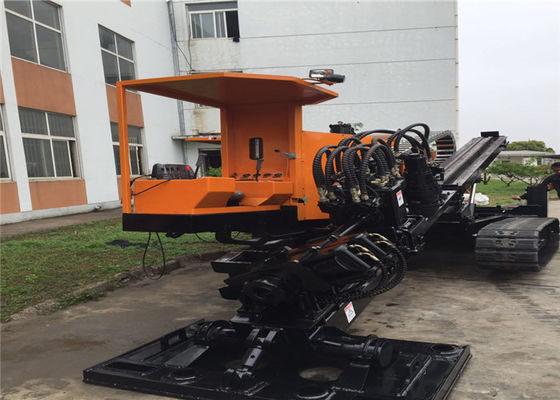

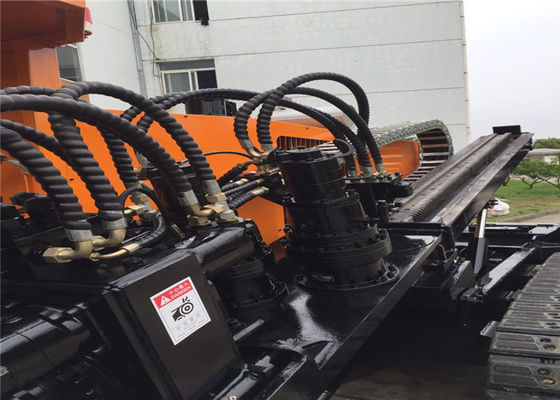

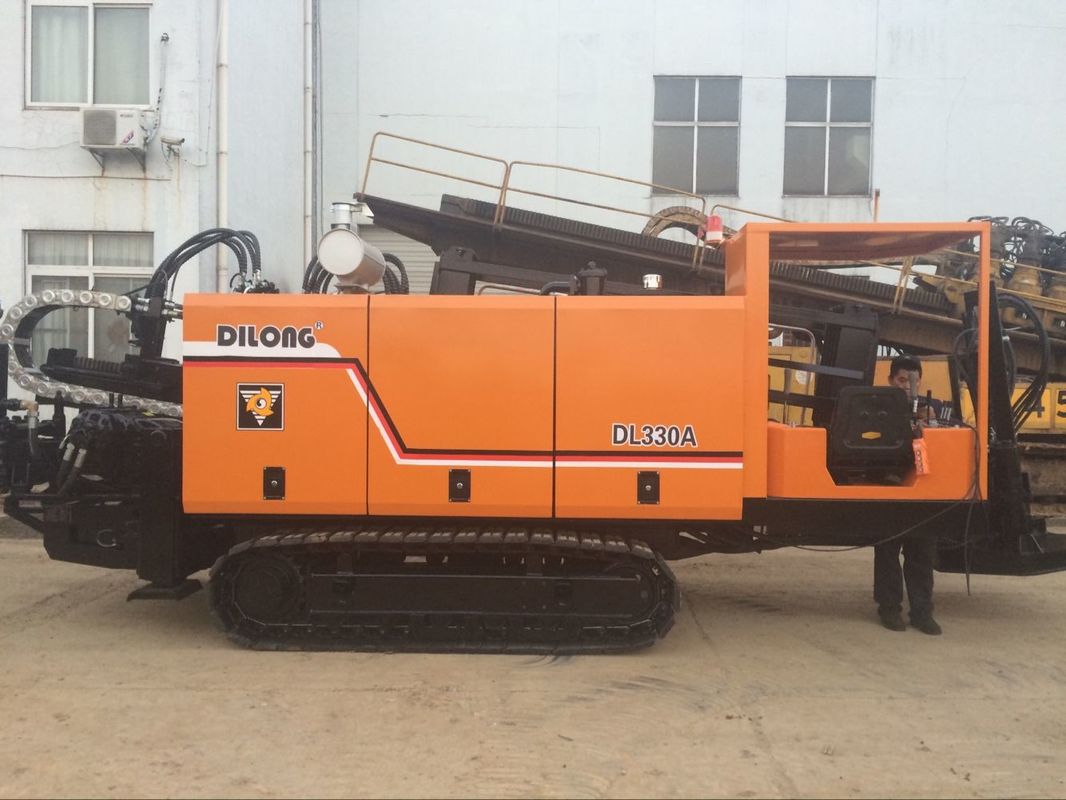

30T Underground Hdd Horizontal Directional Drilling Pipe Pulling DL330A

30T Underground Hdd Horizontal Directional Drilling Pipe Pulling DL330A

    • 30T Underground Hdd Horizontal Directional Drilling Pipe Pulling DL330A
    • 30T Underground Hdd Horizontal Directional Drilling Pipe Pulling DL330A
    • 30T Underground Hdd Horizontal Directional Drilling Pipe Pulling DL330A
    • 30T Underground Hdd Horizontal Directional Drilling Pipe Pulling DL330A
  • 30T Underground Hdd Horizontal Directional Drilling Pipe Pulling DL330A

    Product Details:

    Place of Origin: NANJING
    Brand Name: DILONG
    Model Number: DL330A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEED DISCUSS
    Delivery Time: After advance payment in 7 days
    Supply Ability: 100 Units PER YEAR
    Contact Now
    Detailed Product Description
    DIMENSION: 6910*2280*2520 WEIGHT: 13.5T
    ENGINE: KUMMINS 153KW THRUST FORCE: 330/660KN
    PULLBACK FORCE: 330/660KN TORQUE: 13000N.m
    High Light:

    directional horizontal drilling

    ,

    horizontal drilling rig

    30T Underground Hdd Horizontal Directional Drilling Pipe Pulling DL330A



    ADVANTAGES

    1, With the use of four-pump hydraulic system ,DL330 drilling machine has better working efficiency and rational power distribution .its forced air cooling system enables it to work reliably for long time.

    2, its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.

    3, Additionally.operationl force adding mechanism is available to provide additional force of 33t,and the holder can realize automatic alignment,and is of national patented product.

    MAIN TECHINICAL PARAMETERS

    Engine KW 153/2200 Dimension(L*W*H) MM 6910*2212*2520
    Max.thrust force KN 330/660 Weight T 11.8
    Max.pullback force KN 330/660 Diameter of drill rod MM Φ73
    Max.torque N.m 13000 Lendht of drill rod M 3
    Max.rotary speed rpm 120 Max diameter of pullback pipe MM Φ150-Φ180
    Max.Moving speed of power head m/min 30 Max pullback pipe length m ~150
    Max.mud pump flow L/min 400 Incidence Angle . 11~20
    Max.mud pressure Mpa 8±0.5 climbing Angle . 14




    Main parts:

    Name Manufacture Standard
    Engine CUMMINS (CHINA) 110KW
    Pump PERMCO (USA)
    Valve LiTe (China)
    Hyraulic Motor Eaton (USA) 6K
    Mud Pump HengTan(China) BW-240
