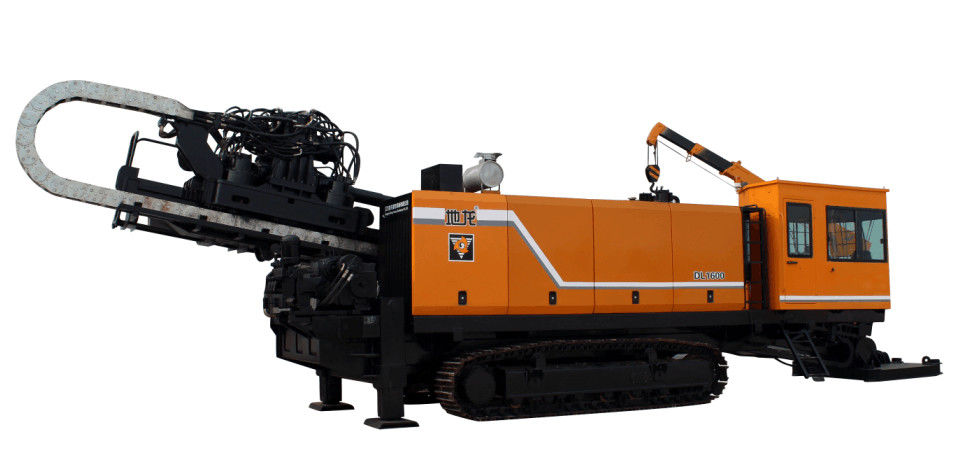

Hydraulic Horizontal Directional Drilling Rig Machine for Sale for 160 ton

Hydraulic Horizontal Directional Drilling Rig Machine for Sale for 160 ton

    • Hydraulic Horizontal Directional Drilling Rig Machine for Sale for 160 ton
    • Hydraulic Horizontal Directional Drilling Rig Machine for Sale for 160 ton
    • Hydraulic Horizontal Directional Drilling Rig Machine for Sale for 160 ton
  • Hydraulic Horizontal Directional Drilling Rig Machine for Sale for 160 ton

    Product Details:

    Place of Origin: NANJING
    Brand Name: DILONG
    Model Number: DL1600

    Payment & Shipping Terms:

    Minimum Order Quantity: ONE SET
    Price: NEED DISCUSS
    Packaging Details: HC can contain 1 set machine and spare HDD PARTS
    Delivery Time: After advance payment in 7 days
    Payment Terms: L/C, D/A, D/P, T/T
    Supply Ability: 100 Units PER YEAR
    Contact Now
    Detailed Product Description
    COLOUR: YELLOW DIMENSION: 13158*2959*3359
    WEIGHT: 40T ENGINE: CUMMINS
    High Light:

    no dig equipment

    ,

    underground pipe laying machine

      With the use of closed loop of tha main rotation hydraulic system ,DL1600 cralwer integrated horizontal directional  drilling machine has better working efficiency,and it has  advanced automatic control system enabling more rational power distribution of the engine.its forced air cooling system enables it to work reliably for long time. Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.The semi-auto drill pipe  holder features simplicity,reliability,easy assembly&disassembly of drill pipe and high efficiency  with the use of 3t hoist .The top-end PALL filter can ensure cleanness of the hydraulic system and long service life of the equipment .Operationl force adding module is available for additional 80Tforce.

    MAIN TECHNICAL PARAMETERS

    Engine kw 409 Dimension(L*W*H) mm 13158*2959*3359
    Max.thrust force KN 1600/2400 Weight T 40
    Max.pullback force KN 1600/2400 Diameter of drill rod mm Φ127
    Max.torque N.m 67000 Lendht of drill rod m 6
    Max.Rotary speed rpm 80 Max diameter of pullback pipe mm Φ1300
    Max.Moving speed of power head m/min 28 Incidence angle . 11~17
    Max.mud puump flow L/min 800 Climbing angle . 15
    Max.mud pressure Mpa 10±0.5
