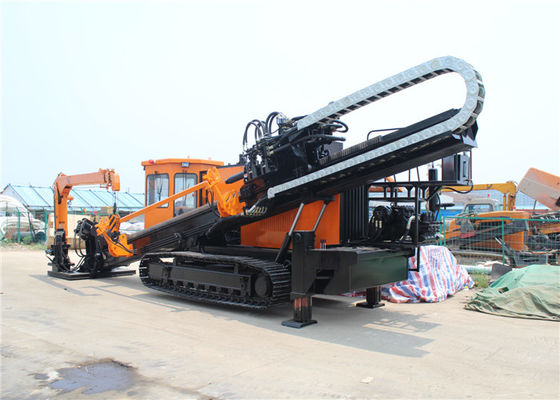

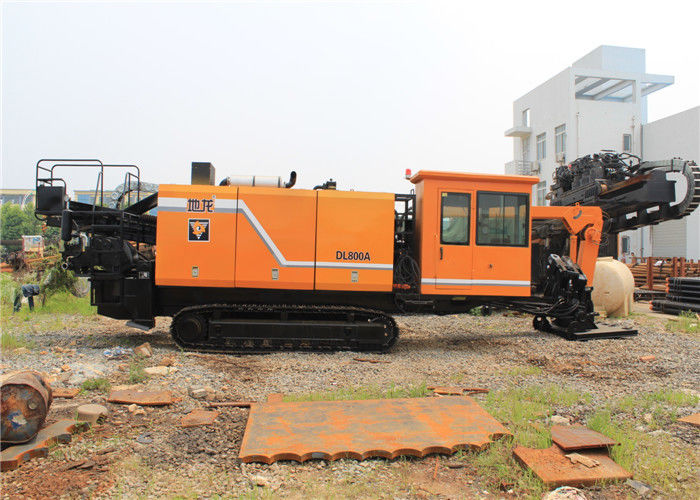

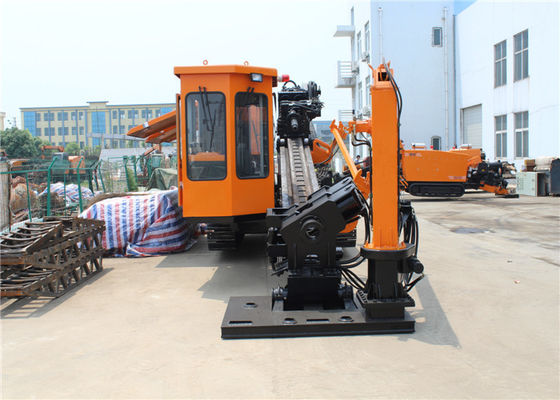

Portable Underground Horizontal Boring Machine / Hdd Drilling Rig

Portable Underground Horizontal Boring Machine / Hdd Drilling Rig

    • Portable Underground Horizontal Boring Machine / Hdd Drilling Rig
    • Portable Underground Horizontal Boring Machine / Hdd Drilling Rig
    • Portable Underground Horizontal Boring Machine / Hdd Drilling Rig
    • Portable Underground Horizontal Boring Machine / Hdd Drilling Rig
  • Portable Underground Horizontal Boring Machine / Hdd Drilling Rig

    Product Details:

    Place of Origin: NANJING
    Brand Name: DILONG
    Model Number: DL800A

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: NEED DISCUSS
    Packaging Details: HC can contain 1 set machine and spare HDD PARTS
    Delivery Time: After advance payment in 7 days
    Payment Terms: L/C, D/A, D/P, T/T
    Supply Ability: 100 Units PER YEAR
    Contact Now
    Detailed Product Description
    COLOUR: YELLOW WEIGHT: 14.5T
    DIMENSION: 11800*2600*3150 THRUST FORCE: 800/1200KN
    PULLBACK FORCE: 800/1200 TORQUE: 38000N.m
    High Light:

    directional drilling machine

    ,

    horizontal drilling equipment

    Portable Underground Horizontal Boring Machine / Hdd Drilling Rig



    CHARACTERISTIC

    Main component configuration

        DL800A horizontal directional drilling machine is a horizontal directional drilling device for one machine. complete machine.The main chassis, power head, drill rack, power station, vice, cab, car crane, hydraulic system, electrical system and other components.

    The chassis mainly consists of main frame and left and right walking device. The rear end of the frame is provided with a hydraulic support leg,
    The walking reducer adopts Dagang Ning IKY34A7500 hydraulic transmission device or the first oil pressure product,

    1,chassis
    The output torque is large and the structure is compact. Using wire walking, transition loading and machine adjustment, convenient safety

    2,Power station unit
    The system consists of a diesel engine, a hydraulic pump, an overflow valve, a hydraulic oil tank, a diesel tank and a valve block
    Assembly, accumulator assembly and so on.
    The power station is powered by a diesel engine and hydraulic pumps are provided for the hydraulic system
    High pressure oil is the core part of the rig. The engine of Dongfeng Cummins engine, total 264kW

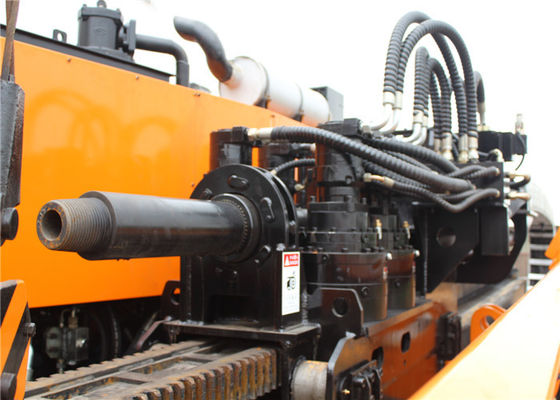

    3,Push and pull device
    The push and pull device is provided by a motor, a gear reducer and a gear rack mechanism to the power head or tension, high strength, stable and reliable operation.

    MAIN TECHNICAL PARAMETERS

    Engine kw 264/2200 Dimension(L*W*H) mm 11800*2600*3150
    Max.thrust force KN 800/1200 Weight T 22
    Max.pullback force KN 800/1200 Diameter of drill rod mm Φ102/Φ114
    Max.torque N.m 3800 Lendht of drill rod m 6
    Max.Rotary speed rpm 110 Max diameter of pullback pipe mm Φ1300
    Max.Moving speed of power head m/min 25 Max pullback pipe length m ~900
    Max.mud puump flow L/min 600 Incidence angle . 12~20
    Max.mud pressure Mpa 10±0.5 Climbing angle . 14




    Main parts:

    Name Manufacture Standard Quantity
    Engine CUMMINS (CHINA) 264KW 1
    Pump

    SAUER DANFOSS (USA)

    PERMCO



    3

    1

    Motor SAM   2
    Thrust motor VIKERS(USA)   6

    Valve POCLAN (FRANCE)   1
