    Product Details:

    Place of Origin: NANJING
    Brand Name: DILONG
    Model Number: DL660

    Payment & Shipping Terms:

    Minimum Order Quantity: ONE SET
    Price: NEED DISCUSS
    Packaging Details: HC can contain 1 set machine and spare HDD PARTS
    Delivery Time: After advance payment in 7 days
    Payment Terms: L/C, L/C, D/A, D/P, T/T
    Supply Ability: 100 Units PER YEAR
    Contact Now
    Detailed Product Description
    COLOUR: YELLOW WEIGHT: 14.5T
    DIMENSION: 9000*2350*2800 THRUST FORCE: 660/990KN
    PULLBACK FORCE: 660/990KN TORQUE: 23800N.m
    High Light:

    horizontal boring machine underground

    ,

    directional drilling rig

    Trenchless Construction Directional Boring Equipment Horizontal

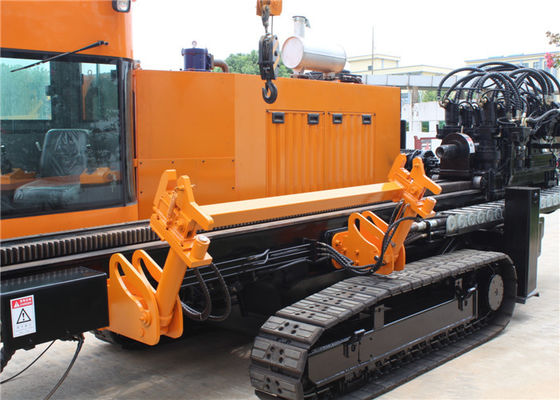

     Main component configuration

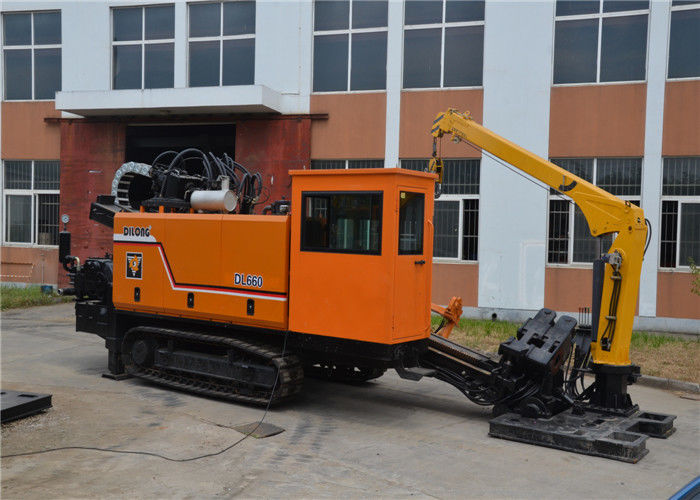

    DL660 horizontal directional drilling machine is a horizontal directional drilling device for one machine. Main machine

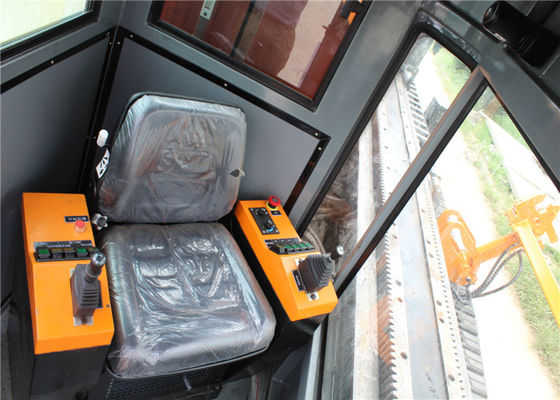

    There are chassis, power head, drill rack, power station, vice, cab, car crane, hydraulic system, electricity,Gas system and other components.
    1 ,Chassis
    The chassis mainly consists of main frame and left and right walking device. The rear end of the frame is provided with a hydraulic support leg.
    The reducer is selected from Dongming Doosan or South Korea's first hydraulic planetary reducer (including motors).
    The output torque is large and the structure is compact. The use of wire walking, transition loading and machine adjustment, convenient and safe.

    2,Power station device
    The system consists of a diesel engine, a hydraulic pump, an overflow valve, a hydraulic oil tank, a diesel tank and a valve block
    Assembly, accumulator assembly and so on.
    The power station is powered by a diesel engine and hydraulic pumps are provided for the hydraulic system. High pressure oil is the core part of the rig.
    Dongfeng Cummins engine is used, the total power is 194kW.
    3, power head
    The power head rotation is driven by a motor and a speed reducer. It has high and low two bit drilling speed and stepless regulation work. it can adapt to different working conditions.

    MAIN TECHNICAL PARAMETERS

    Engine kw 194/2200 Dimension(L*W*H) mm 9000*2350*2800
    Max.thrust force KN 660/990 Weight T 14.5
    Max.pullback force KN 660/990 Diameter of drill rod mm Φ89
    Max.torque N.m 23800 Lendht of drill rod m 4.5
    Max.Rotary speed rpm 110 Max diameter of pullback pipe mm Φ1200
    Max.Moving speed of power head m/min 29.5 Max pullback pipe length m ~900
    Max.mud puump flow L/min 600 Incidence angle . 12~20
    Max.mud pressure Mpa 10±0.5 Climbing angle . 14




    Main parts:

    Name Manufacture Standard
    Engine CUMMINS (CHINA) 194KW
    Pump

    PERMCO (USA)

    SAUER DANFOSS(USA)


    Valve LiTe (China)
    Thrust Motor Eaton (USA) 6K
    Rotate motor SAM(ITALY) SH7V
    Mud Pump HengTan(China) BW-600
