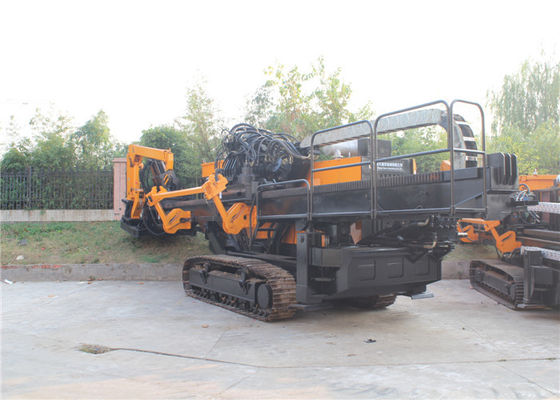

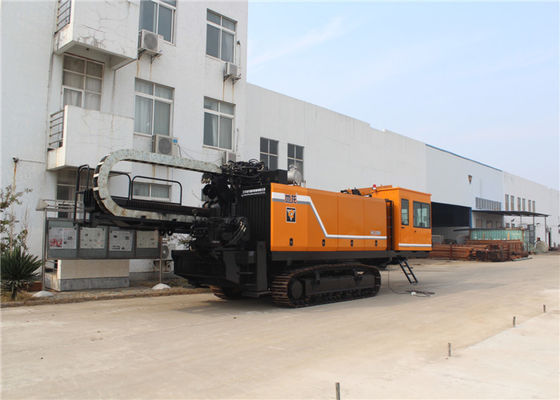

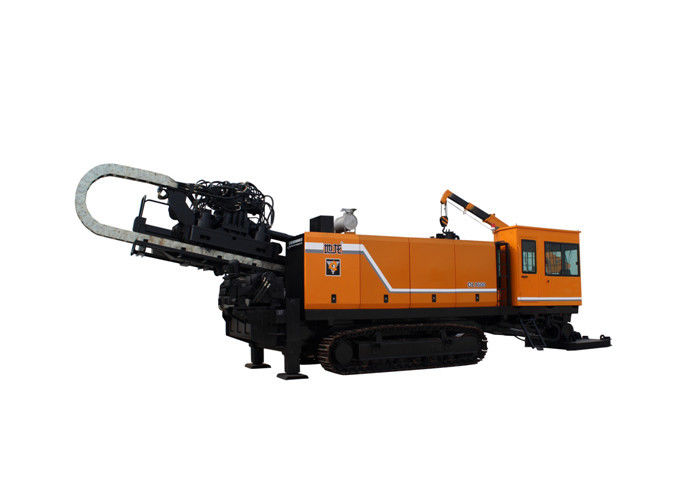

160 Ton Trenchless construction Hydraulic Drilling Rig machinery KUMMINS ENGINE

160 Ton Trenchless construction Hydraulic Drilling Rig machinery KUMMINS ENGINE

  • 160 Ton Trenchless construction Hydraulic Drilling Rig machinery KUMMINS ENGINE
  • 160 Ton Trenchless construction Hydraulic Drilling Rig machinery KUMMINS ENGINE
  • 160 Ton Trenchless construction Hydraulic Drilling Rig machinery KUMMINS ENGINE
  • 160 Ton Trenchless construction Hydraulic Drilling Rig machinery KUMMINS ENGINE
160 Ton Trenchless construction Hydraulic Drilling Rig machinery KUMMINS ENGINE
Product Details:
Place of Origin: NANJING
Brand Name: DILONG
Model Number: DL1600
Payment & Shipping Terms:
Minimum Order Quantity: ONE SET
Price: NEED DISCUSS
Packaging Details: HC can contain 1 set machine and spare HDD PARTS
Delivery Time: After advance payment in 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 Units PER YEAR
Contact Now
Detailed Product Description
COLOUR: YELLOW DIMENSION: 13158*2959*3359
WEIGHT: 40T ENGINE: KUMMINS
MUD PUMP FLOW: 800L/MIN MUD PRESSURE: 10±0.5
High Light:

horizontal directional boring

,

hdd directional drilling

160 Ton Trenchless construction Hydraulic Drilling Rig machinery





INTRODUCES

1, With the use of closed loop of tha main rotation hydraulic system ,DL1600 cralwer integrated horizontal directional  drilling machine has better working efficiency

2, It  has  advanced automatic control system enabling more rational power distribution of the engine.its forced air cooling system enables it to work reliably for long time.

3, Its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.

4, The semi-auto drill pipe  holder features simplicity,reliability,easy assembly&disassembly of drill pipe and high efficiency  with the use of 3t hoist .

5, The top-end PALL filter can ensure cleanness of the hydraulic system and long service life of the equipment .Operationl force adding module is available for additional 80Tforce.

MAIN TECHNICAL PARAMETERS

Engine kw 409 Dimension(L*W*H) mm 13158*2959*3359
Max.thrust force KN 1600/2400 Weight T 40
Max.pullback force KN 1600/2400 Diameter of drill rod mm Φ127
Max.torque N.m 67000 Lendht of drill rod m 6
Max.Rotary speed rpm 80 Max diameter of pullback pipe mm Φ1300
Max.Moving speed of power head m/min 28 Incidence angle . 11~17
Max.mud puump flow L/min 800 Climbing angle . 15
Max.mud pressure Mpa 10±0.5




160 Ton Trenchless construction Hydraulic Drilling Rig machinery KUMMINS ENGINE

Whatsapp number:008618936869890

EMAIL:trade@njdl.com
