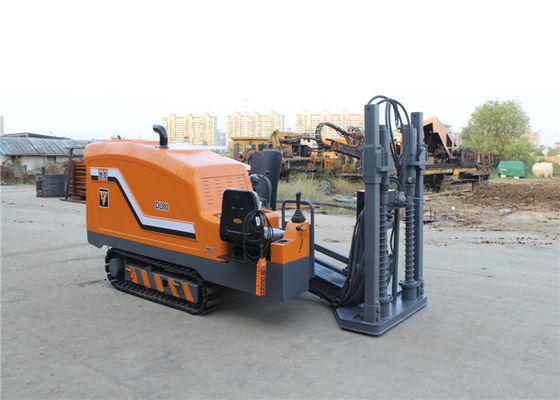

8T Underground Directional Drilling Equipment For Sale Cable Laying DL80

8T Underground Directional Drilling Equipment For Sale Cable Laying DL80

  • 8T Underground Directional Drilling Equipment For Sale Cable Laying DL80
  • 8T Underground Directional Drilling Equipment For Sale Cable Laying DL80
  • 8T Underground Directional Drilling Equipment For Sale Cable Laying DL80
  • 8T Underground Directional Drilling Equipment For Sale Cable Laying DL80
8T Underground Directional Drilling Equipment For Sale Cable Laying DL80
Product Details:
Place of Origin: NANJING
Brand Name: DILONG
Model Number: DL80
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: NEED DISCUSS
Packaging Details: HC can contain 1 set machine and spare HDD PARTS
Delivery Time: After advance payment in 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 Units PER YEAR
Contact Now
Detailed Product Description
COLOUR: YELLOW WEIGHT: 4.2T
DIMENSION: 4000*1597*2220 THRUST FORCE: 80KN
PULLBACK: 80KN
High Light:

hdd pipe laying

,

hdd drilling rigs for sale

8T Underground Directional Drilling Equipment For Sale Cable Laying DL80



ADVANTAGES

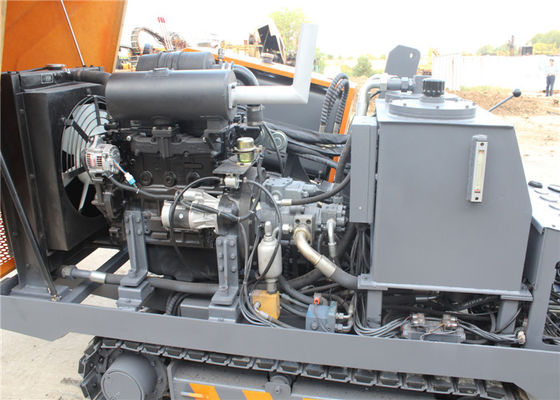

  1, With the use of four-pump hydraulic system (open constant-power system),DL80 crawler integrated hrizontal directional drilling machine has better working efficiency ,and it has 47.3Kw engine  .i

2,Its forced air cooling system enables it to work reliably for long time. Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.

MAIN TECHNICAL PARAMETERS

Engine KW 47.3/2200 Dimension(L*W*H) MM 4000*1597*2220
Max.thrust force KN 80 Weight T 4.2
Max.pullback force KN 80 Diameter of drill rod MM Φ42
Max.torque N.m 2200 Lendht of drill rod M 1.5
Max.rotary speed rpm 190 Max diameter of pullback pipe MM Φ200-Φ500
Max.Moving speed of power head m/min 33 Max pullback pipe length m ~80
Max.mud pump flow L/min 40 Incidence Angle . 8~20
Max.mud pressure Mpa 3.5±0.5 climbing Angle . 14
