Place of Origin: | NANJING |
Brand Name: | DILONG |
Model Number: | DFM1504 |
Minimum Order Quantity: | ONE SET |
---|---|
Price: | NEED DISCUSS |
Packaging Details: | HC can contain 1 set machine and spare HDD PARTS |
Delivery Time: | After advance payment in 7 days |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 100 Units PER YEAR |
COLOUR: | YELLOW | WEIGHT: | 1.4T |
---|---|---|---|
DIMENSION: | 1295*960*1100 | THRUST FORCE: | 70KN |
PULLBACK FORCE: | 50KN | ||
High Light: | directional drilling machine,horizontal drilling equipment |
Strong Air Cooling Directional Boring Machine Manufacturer With Mud Pump
Technical characteristics
1, DFM1504B type drill power is strong.
2 ,Strong air cooling system.

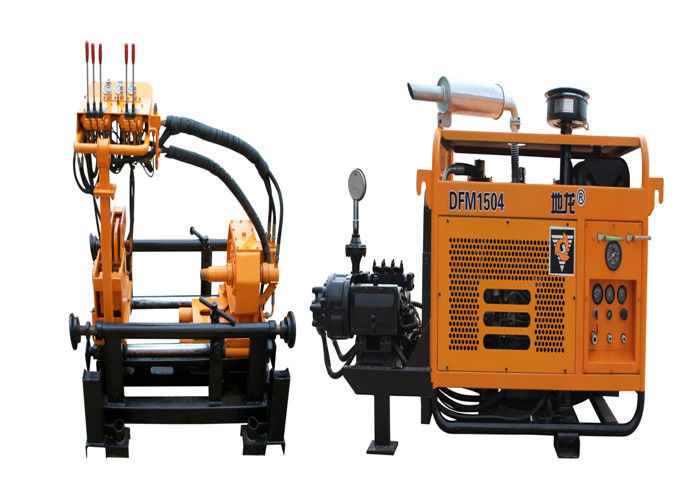

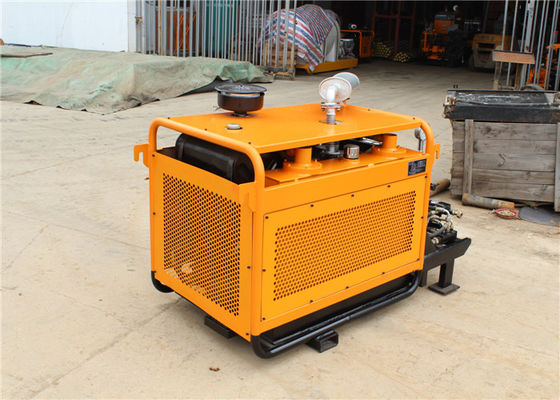

3. The drilling rig is a split structure, which is composed of a main engine and a power station. In the narrowest space or within the tunnel can also easily work.
4 , Patent technology fixed frame can adjust the angle of incidence.
5, Clip can move before and after, easy to work in narrow tunnels.
6 , Hydraulic system and circuit design is simple and reliable, low failure rate.
7, The domestic Shandong laidong engine is for domestic sales.
8, The main pump, main valve are world brand products.

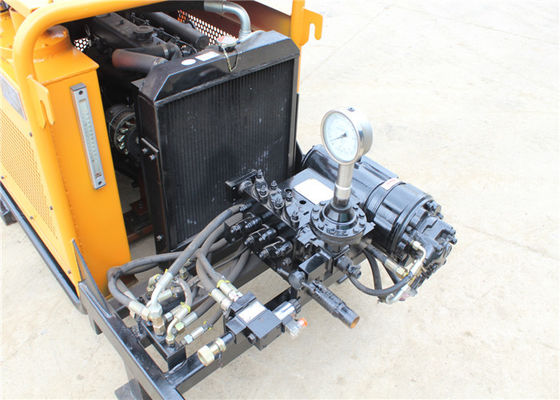

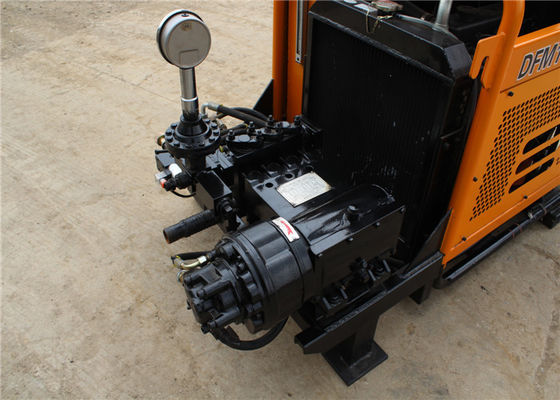

9, With mud pump, flow of 40L/min.
10, Micro drilling rig, in the same tonnage drilling rig, the smallest volume
MAIN TECHNICAL PARAMETERS
Engine | KW | 26.5/2350 | Dimension(L*W*H) | MM | 1295*960*1100 |
Max.thrust force | KN | 70 | Weight | T | 1.4 |
Max.pullback force | KN | 50 | Diameter of drill rod | MM | Φ50 |
Max.torque | N.m | 1300 | Lendht of drill rod | M | 0.5 |
Max.rotary speed | rpm | 100 | Max diameter of pullback pipe | MM | Φ150-Φ300 |
Max.Moving speed of power head | m/min | 14.5 | Max pullback pipe length | m | ~80 |
Max.mud pump flow | L/min | 40 | Incidence Angle | . | 0~10 |
Max.mud pressure | Mpa | 3±0.5 | climbing Angle | . |
